Answers
Cyclones are low-pressure air zones enclosed by somewhat circular isobars.
Cyclones are low-pressure air masses enclosed by somewhat circular isobars. These regions of low pressure are characterized by converging winds that move in a counterclockwise direction in the Northern Hemisphere and a clockwise direction in the Southern Hemisphere.
Cyclones are typically associated with cloudy and stormy weather, as the low pressure allows air to rise and cool, leading to the formation of clouds and precipitation.
Tropical cyclones, also known as hurricanes or typhoons, are a type of cyclone that form over warm ocean waters near the equator and can cause significant damage due to high winds and heavy rainfall. In contrast, extratropical cyclones form in mid-latitudes and are often associated with winter storms and blizzards.
To know more about circular isobars, refer here:
https://brainly.com/question/13434165#
#SPJ11
Related Questions
Which characteristic gives the most information about what kind of element an atom is ?
Answers
Answer:
The atomic number
Explanation:
The atomic number
Consider the situation illustrated in the figure below. If θ = 35° and the masses of blocks B and A are, respectively, Mb and Ma= 0.4Mb, (a) what should be the minimum value of the static coefficient of friction μs between the table and block B so that the system remains in balance? (b) In this case, what will be the tension in the rope segment connected to (node) and the vertical wall?
Answers
Answer:
(a) μ ≈ 0.57
(b) not enough information
Explanation:
Draw a free body diagram.
There are four forces acting on block B:
Weight force Mb g pulling downNormal force N pushing upFriction force Nμ pulling leftTension force T₁ pulling rightThere are three forces acting on the node:
Tension force T₁ pulling leftTension force T₂ pulling 35° above the horizontalWeight force Ma g pulling down(a)
Sum of forces on block B in the y direction:
∑F = ma
N − Mb g = 0
N = Mb g
Sum of forces on block B in the x direction:
∑F = ma
T₁ − Nμ = 0
T₁ = Nμ
T₁ = Mb g μ
Sum of forces on the node in the y direction:
∑F = ma
T₂ sin 35° − Ma g = 0
T₂ sin 35° = Ma g
Sum of forces on the node in the x direction:
∑F = ma
T₂ cos 35° − T₁ = 0
T₂ cos 35° = T₁
T₂ cos 35° = Mb g μ
Divide the previous equation by this equation, eliminating T₂.
tan 35° = Ma g / (Mb g μ)
μ = Ma / (Mb tan 35°)
μ = 0.4 / tan 35°
μ ≈ 0.57
(b) T₂ sin 35° = Ma g = 0.4 Mb g
Without knowing the value of Mb, we cannot find the value of the tension force T₂.
Equal masses of two different liquids are put into identical beakers.
Liquid 1 is heated for 100s and liquid 2 is heated for 200s by heaters of the same power.
The temperature of both liquids increases by the same amount.
Which statement is correct?
A Both liquids receive the same amount of energy.
B. Liquid 1 receives more energy than liquid 2.
C. Both liquids have equal thermal capacity.
D. The thermal capacity of liquid 1 is less than the thermal capacity of liquid 2.
Answers
Answer:
C
Explanation:
Because they both received the same temperature
which phase change involves an in crease in the attractive force between molecules
Answers
Answer:
condensation
Explanation:
Condensation is the phase change involves an in crease in the attractive force between molecules.
In an attempt to deliver a parcel on time, the dispatch rider had to ride 10km 15 degrees SE, he then rode 11 km 30 degrees NE and then takes a shortcut at 22km W .find the rider's displacement
Answers
The total displacement of the dispatch rider is calculated as 43km.
Data;
10km 15 degrees SE11km 30 degrees NE22km WTotal DisplacementTo calculate the total displacement of the dispatch rider, we can simply add up the total distance covered by the rider.
This becomes;
\(10+11+22 = 43km\)
The total displacement of the dispatch rider is calculated as 43km.
Learn more on displacement here;
https://brainly.com/question/13416288
https://brainly.com/question/1397750
Can you guys please help me out
Answers
Answer:
D. Some atoms lack a neutron
Explanation:
Some atoms has less neutron than protons and those are called isotope atom.
2.
A ball player hits a home run, and the ball just clears the wall which is 22.0 m high.
The ball is hit at an angle of 37.0" with a velocity of 45.0 m/s. If the ball is hit from
a height of 0.750 m above the ground, (a) How long is the ball in the air until it
clears the wall while on its way down? (b) How far is the wall from home plate?
Answers
a.) the ball was going up at 0.95 seconds and coming down at 4.58 seconds
b.) the distance of the wall from the plate is 34 m
Given that a ball player hits a home run, and the ball just clears the wall which is 22.0 m high. The ball is hit at an angle of 37.0" with a velocity of 45.0 m/s.
Since the ball is hit at an angle of 37.0 degrees, We need to find the vertical and horizontal component of the velocity.
\(U_{y}\) = 45 Sin 37 = 27.08 m/s
\(U_{x}\) = 45 cos 37 = 35. 94 m/s
Let us first calculate the maximum height reached.
\(V^{2}\) = \(U_{y} ^{2}\) - 2gH
At maximum height, V = 0
0 = \(27.08^{2}\) - 2 x 9.8H
19.6H = 733.3
H = 733.33/19.6
H = 37.4 m
If the ball is hit from a height of 0.750 m above the ground,
(a) To calculate the time the ball stays in the air until it clears the wall while on its way down, we will use the formula below.
h = \(U_{y}\)t - 1/2g\(t^{2}\)
Substitute for all the parameters
22 - 0.75 = 27.08t - 0.5 x 9.8 x \(t^{2}\)
21.25 = 27.08t - 4.9\(t^{2}\)
4.9\(t^{2}\) - 27.08t + 21.25
We will use quadratic formula
a = 4.9
b = - 27.08
c = 21.25
t = \(\frac{-b+/- \sqrt{b^{2} - 4ac } }{2a}\)
t = \(\frac{27.08 +/- \sqrt{27.08^{2} - 4 * 4.9 * x^{2} 21.25 } }{2 * 4.9}\)
t = \(\frac{27.08 +/-\sqrt{733.3 - 416.5} }{9.8}\)
t = \(\frac{27.08 +/- 17.8}{9.8}\)
t = 44.88/9.8 or 9.28 / 9.8
t = 4.58 s or 0.95 s
This means that the ball was going up at 0.95 seconds and coming down at 4.58 seconds
(b) The distance of the wall from home plate will be the range which is
R = \(U_{x}\)t
R = 35.94 x 0.95
R = 34.143 m
Therefore, the distance of the wall from the plate is 34 m approximately
Learn more about projectile here: https://brainly.com/question/4441382
During an observation, it was noticed that light diffracts as it passes through small slits in a barrier. What does this evidence reveal about light?
It can travel in various wavelengths.
It can travel through the vacuum of space.
It demonstrates a behavior of energy.
It demonstrates a behavior of waves.
Answers
Answer:
It can travel in various wavelengths. brainliest?
Explanation:
The evidence that reveals about the light is that It can travel in various wavelengths.
What is diffraction?
It is the wave property that should be blending of the wave related to the corners.
At the time when the wave is bending so it passed via the openings.
Also, the light diffracted via the small slits and it should be shown to arise in the water waves and the sound waves.
hence, the first option is correct.
Learn more about light here: https://brainly.com/question/26122702
A driver is traveling at 30.0 m/s when he sees a moose crossing the road 80.0 m ahead. The moose becomes distracted and stops in the middle of the road. If the driver of the car slams on the brakes, what is the minimum constant acceleration he must undergo to stop short of the moose and avert an accident?
Answers
Answer:
The value is \(a = -5.625 \ m/s^2\)
Explanation:
From the question we are told that
The speed of the driver is \(u = 30.0 \ m/s\)
The distance of the car from the moose is \(s= 80 \ m\)
Generally from the third equation of motion we have that
\(v ^2 = u ^2 + 2as\)
Here v = 0 \ m/s
So
\(0 = 30 ^2 + 2 * a * 80\)
\(a = -5.625 \ m/s^2\)
Communication cannot be reversed
Answers
Communication cannot be reversed. This statement is clearly true. Because, we cannot take the words back and undo all the initial effects during communication.
What is reversibility ?An action that can be reversed back to its initial state is called reversible otherwise it is called irreversibility. Communication is irreversible and can be defined as a principle of interpersonal interaction in which we cannot take or retrieve information we say or pass to another party, whether it is what we intended to say or not.
We can wish we hadn't said something, regret it, and apologies later, but we can't take it back because once it's out, it's out.
We're only talking to make up for the unintended consequences of previous communication errors. We believe that taking more care with what we say in the first place can break this seemingly never-ending cycle.
Once a word, phrase, or comment is spoken, or an impulsive text message or e-mail is sent, it cannot be erased from the memory of others. Because communication is irreversible, one should always be mindful of what they communicate to others.
Find more on reversibility:
https://brainly.com/question/15284219
#SPJ9
Your question is incomplete. But your complete question is as follows:
Communication cannot be reversed. True/false ?
Determine the smallest distance x to a position where 450-nm light reflected from the top surface of the glass interferes constructively with light reflected from the silver coating on the bottom. The light changes phase when reflected at the silver coating.
Answers

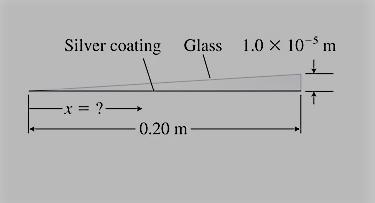

A wedge of glass of refractive index 1.64 has a silver coating on the bottom, as shown in the image attached below.
Determine the smallest distance x to a position where 450-nm light reflected from the top surface of the glass interferes constructively with light reflected from the silver coating on the bottom. The light changes phase when reflected at the silver coating.
Answer:
the smallest distance x = 2.74 × 10⁻³ m or 2.74 mm
Explanation:
From the given information:
The net phase change is zero because both the light ray reflecting from the air-glass surface and silver plate undergo a phase change of \(\dfrac{\lambda}{2}\) , as such the condition for the constructive interference is:
nΔy = mλ
where;
n = refractive index
Δy = path length (inside the glass)
So, from the diagram;
\(\dfrac{y}{x}=\dfrac{10^{-5} \ m}{0.2 \ m}\)
\(\dfrac{y}{x} = 5 \times 10^{-5}\)
\(y = 5 \times 10^{-5} x\)
Now;
Δy can now be = 2 ( 5 × 10⁻⁵ \(x\))
Δy =1 × 10⁻⁴\(x\)
From nΔy = mλ
n( 1 × 10⁻⁴\(x\) ) = mλ
\(x = \dfrac{m \lambda}{n \times 1 \times 10^{-4} }\)
when the thickness is minimum then m = 1
Thus;
\(x = \dfrac{1 \times 450 \times 10^{-9} \ m}{1.64 \times 1 \times 10^{-4} }\)
x = 0.00274 m
x = 2.74 × 10⁻³ m or 2.74 mm
Answer: B. The surface of the coating is rough, so light that shines on it gets scattered in many directions.
Explanation: On Edge!!!!!!!!!!!!!!!!!!!!
give a strong idea to protect , purify and the beautify of the Dal lake
Answers
Answer:
Water in dal lake is test for any heavy metals and pollutant, sewage and drainage system are also monitored for the same.
Explanation:
Dal lake is located in Srinagar that is the state capital of Kashmir and is known for recreation and tourism purposes. The area covers about 18 km sq. and forms a part of natural wetlands. The lake is prone to pollution and has recently undergone restoration measures. To address the problems of eutrophication algae and large-scale microplankton have been removed from the water. The government of India has taken various measures to check the pollution by setting up a committee to monitor the proper use of allotted funds.6.1 62 6.3 64 quency of sound waves emitted by a stationary source. the relationship between the observed frequency and the The learner moves towards the source at a constant velocity and records the observed frequency (f) for a given source frequency (fs). This process is repeated for different frequencies of the source, with the learner moving at the same constant velocity each time The graph below shows how the observed frequency changes as the frequency of sound waves emitted by the source changes. fL (Hz) fs (Hz) Name the phenomenon illustrated by the graph Name ONE application in the medical field of the phenomenon in QUESTION 6.1. O Write down the type of proportionality that exists between f and fs, as illustrated by the graph. The gradient of the graph obtained is found to be 1,06. (1) of the
Answers
The highlighted phenomenon in the graph is called the Doppler effect, which involves a modification of frequency for sound waves (or any kind of wave) due to the difference in motion between the observed and the source.
How to explain the effectAn example of this effect present in the medical field is through ultrasound imaging; doctors use it to measure the velocity and route of blood circulating throughout the patient's body by sending out high-frequency sound waves and analyzing the reflected waves.
What appears in the graphed illustration specifically is linear proportionality, meaning that there is a direct correlation between f and fs, the former being the observed frequency and the latter the source frequency.
Learn more about Doppler on
https://brainly.com/question/1330077
#SPJ1
Which characterictic of motion could change without changing the velocity of an object
Answers
Answer:
The direction could change
Which statement places events during the Space Race in the correct order from the earliest to the most recent?
1.NASA was established, US satellite Explorer launched, first man walked on the moon, first man orbited the Earth
2.first man walked on the moon, first man orbited the Earth, NASA was established, US satellite Explorer launched
3.US satellite Explorer launched, NASA was established, first man orbited the Earth, first man walked on the moon
4. first man orbited the Earth, first man walked on the moon, US satellite Explorer launched, NASA was established
Answers
Answer:
3,1,4,2
Explanation:
Answer:C
Explanation:
Help please
A machine is applying a torque to rotationally accelerate a metal disk during a manufacturing process. An engineer is using a graph of torque as a function of time to determine how much the disk’s angular speed increases during the process.
The engineer determines that the machine increased at a constant rate the disk’s angular speed from 100 rad/s to 300 rad/s over a time of 5 seconds. What was the angular displacement of the disk during those 5 seconds?
Answers
The angular displacement of the disk during those 5 seconds is 800 rad.
What is acceleration?
The rate at which an item changes its velocity is known as acceleration, a vector quantity. If an object's velocity is changing, it is acceleration.
Given in the question
Initial = 100 rad/s
Final = 300 rad/s
Time , t =5 s use first newton equation of motion,
we get angular acceleration, using above value α = 40 rad/sec².
Using 3 equation of motion θ = 800 rad.
The angular displacement of the disk during those 5 seconds is 800 rad.
To learn more about acceleration refer to the link:
brainly.com/question/12550364
#SPJ2
Answer:
1000 radians
Explanation:
To determine the angular displacement of the disk during the 5-second period, we can use the formula relating angular displacement, initial angular velocity, final angular velocity, and time:
θ = (ωf - ωi) * t
where:
θ is the angular displacement,
ωi is the initial angular velocity,
ωf is the final angular velocity, and
t is the time interval.
In this case, the initial angular velocity is 100 rad/s, the final angular velocity is 300 rad/s, and the time interval is 5 seconds. Plugging these values into the formula, we get:
θ = (300 rad/s - 100 rad/s) * 5 s
= 200 rad/s * 5 s
= 1000 rad
Therefore, the angular displacement of the disk during the 5-second period is 1000 radians.
PLEASE MARK AS BRAINLIESTWhich statement correctly describes the relationship between thermal energy and particle movement?(1 point)
As thermal energy increases, there is more particle movement.
As thermal energy increases, there is more particle movement.
As thermal energy increases, there is less particle movement.
As thermal energy increases, there is less particle movement.
As thermal energy increases, particle movement does not change.
As thermal energy increases, particle movement does not change.
As thermal energy increases, it is not possible to predict particle movement.
As thermal energy increases, it is not possible to predict particle movement.
Answers
Answer:
As thermal energy increases,there is more particle movement
An insect lands 0.1m from the centre of a turn table while the record is turning at 55 rev/min at what linear speed will the insect be carried
collision with the near stationary photograph
Answers
The linear speed will be the insect be 0.5759 meter/second carried collision with the near stationary photograph.
What is speed?
Speed is distance travelled by the object per unit time. Due to having no direction and only having magnitude, speed is a scalar quantity With SI unit meter/second.
Given that an insect lands 0.1m from the center of the turn table.
Rotational speed of the turn table = 55 rev/min
= (55×2π/60) rad/second
= 5.759 rad/second.
Hence, the speed of the insect be = Rotational speed × length
= 5.759 rad/second × 0.1 M.
= 0.5759 meter/second.
Therefore, the speed of the insect be 0.5759 meter/second.
Learn more about speed here:
https://brainly.com/question/28224010
#SPJ1
Why is it important to assess your fitness level?
Answers
Assessing your fitness level is important because it help in tracking your progress and determine if you are making improvements. Regular assessments can help you identify areas where you may need to make adjustments to your fitness routine to achieve your goals. By assessing fitness level, you can identify areas where you may be weaker or less flexible. This information can help you design a fitness routine that addresses these areas and reduces our risk of injury.
Regular physical activity and exercise can improve overall health and reduce the risk of chronic diseases such as heart disease, diabetes, and obesity. By understanding your fitness level, you can design an exercise routine that helps you achieve optimal health and wellness.
2. You are kite-surfing and your kite is pulling
you upwards at an angle of 60° with respect to
the ocean, with a force of 1200 Newtons. What
component of that force is up? How much of it
is sideways, parallel to the water?
Answers
The upward component of that force is 1039.23 N.
The parallel component of that force is 600N.
What is force?The definition of force in physics is: The push or pull on a massed object changes its velocity.
An external force is an agent that has the power to alter the resting or moving condition of a body.
The magnitude of force = 1200 Newtons.
Angle with respect to the ocean = 60°.
The upward component of that force is = F sin60° = 1200×sin60° N = 1039.23 N.
The parallel component of that force is = F cos60° = 1200× cos60° N = 600N.
Learn more about force here:
https://brainly.com/question/13191643
#SPJ1
Which interaction contributes to the greenhouse effect?
A (Gases in the atmosphere absorb heat.
B (Dust particles scatter and reflect light from the Sun.
C (Green visible light is trapped in Earth’s atmosphere.
D (Light travels through a thick part of the atmosphere at sunrise and sunset.
Answers
Answer:
A
Explanation:
Answer:
A
Explanation:
Gases in the atmosphere absorb heat.
You know when you have a blanket around you and some heat gets trapped in but some still gets out. Thats basically what it is.
Plus I got it right in multiple questions including the test!
I hope that reassured you!
Have a good night!
3. Two people push on a car with a force of 5150 N, and the car moves a distance of 8.0m. What is the
work done on the car?
A. 643.7J
B. 1.65 x 105 J
C. 5163 J
D. 4.12 x 104 J
bolo mot
Answers
find the largest natural number m such that n 3 - n is divisible by m for all n e n. prove your assertion.
Answers
Since the sum of the odd term coefficients and the even term coefficients must both be zero, the expression a0+a1k+a2k2++ankn is divisible by 3 for all kN.
What is the greatest integer that can divide each natural number n by n3?Number `n3n is divisible by 6 because there is a multiple of two in a pair of consecutive numbers and a multiple of three in a triplet of consecutive integers.Since the sum of the odd term coefficients and the even term coefficients must both be zero, the expression a0+a1k+a2k2++ankn is divisible by 3 for all kN.Equation n3−n=n(n2−1)=n(n+1)(n−1). There must be at least one even number among these three consecutive integers. Furthermore, 3 must divide one of the integers using the same reasoning. As n3n is divisible by 2 and 3, it follows that it is divisible by 6, too.To learn more about consecutive numbers refer to:
https://brainly.com/question/26352026
#SPJ4
The component of a velocity are 25m/s and 16m/s . determine the velocity
Answers
The resultant velocity of the two components velocity is 29.68 m/s.
What is resultant velocity?The resultant velocity of an object is the sum of its individual vector velocities. Also, the resultant velocity of an object is the single velocity that can effectively represent the two velocities in both magnitude and direction.
The resultant velocity of the two given components of velocity if calculated as follows;
V² = Vx² + Vy²
where;
Vx is the x component of the velocityVy is the y component of the velocityV² = 25² + 16²
V² = 881
V = √881
V = 29.68 m/s
Learn more about resultant velocity here: https://brainly.com/question/24767211
#SPJ1
The coefficient of static friction between a rubber tire and dry pavement is about 0.800. Assume that a car’s engine only turns the two rear wheels and that the weight of the car is uniformly distributed over all four wheels.
What limit does the coefficient of static friction place on the time min required for a car to accelerate from rest to 60.0 mph (26.8 m/s)?
Answers
The coefficient of static friction places a limit of approximately 3.42 seconds on the minimum time required for the car to accelerate from rest to 60.0 mph (26.8 m/s).
To find the limit that the coefficient of static friction places on the minimum time required for a car to accelerate from rest to 60.0 mph (26.8 m/s), we need to consider the maximum acceleration the car can achieve due to the friction between the rear tires and the pavement.
The maximum acceleration can be determined using the formula:
a_max = μs * g
where μs is the coefficient of static friction and g is the acceleration due to gravity (approximately 9.8 m/s²).
In this case, since the car's engine only turns the two rear wheels, the maximum acceleration is limited by the friction force between the rear tires and the pavement.
Now, to calculate the minimum time required to accelerate to 60.0 mph (26.8 m/s), we can use the following kinematic equation:
v = u + a * t
where v is the final velocity (26.8 m/s), u is the initial velocity (0 m/s), a is the acceleration, and t is the time.
Rearranging the equation, we have:
t = (v - u) / a
Plugging in the values, we get:
t = (26.8 m/s - 0 m/s) / a_max
t = 26.8 m/s / (μs * g)
Substituting the given value for the coefficient of static friction (μs ≈ 0.800) and the acceleration due to gravity (g ≈ 9.8 m/s²), we can solve for the minimum time required:
t = 26.8 m/s / (0.800 * 9.8 m/s²)
t ≈ 3.42 seconds
Therefore, the coefficient of static friction places a limit of approximately 3.42 seconds on the minimum time required for the car to accelerate from rest to 60.0 mph (26.8 m/s).
for more questions on friction
https://brainly.com/question/28270202
#SPJ8
This model shows DNA, chromosomes, and genes. If B is a cell and C is the nucleus, what is A?
Answers
Based on the information, we can infer that A. represents a Mitochondria.
What is a mitochondria?Mitochondria is a term to refer to the eukaryotic cell organelles responsible for supplying most of the energy necessary for cell activity through the process called cellular respiration.
Based on the information, we can infer that the element that is labeled with the letter A is a mitochondrion because its location is that of a mitochondrion. In this case, the mitochondria is red, although in other models it can be represented with another color. In general, it is given this shape and this color to distinguish it from other elements of the cell.
Note: This question is incomplete. Here is the complete information:
Attached image
Learn more about DNA in: https://brainly.com/question/264225
#SPJ1
The diagram below shows the velocity vectors for two cars that are moving
relative to each other.
45 m/s west
25 m/s east
Car 1.
Car 2
From the frame of reference of car 2, what is the velocity of car 1?
OA. 70 m/s east
B. 20 m/s west
OC. 70 m/s west
OD. 20 m/s east
SUBMIT
Answers
The velocity of the car 1 can be seen from the calculation as 20 m/s West
What is relative motion?
A coordinate system or point of view used to observe motion is known as a frame of reference. It can be used as a guide when describing an object's position, speed, and acceleration. Different frames of reference may result in various motion observations.
The relative velocity is the velocity of an object or observer as observed from a particular frame of reference.
We can see that the velocity of the car 1 is;
45 m/s - 25 m/s
= 20 m/s West
Learn more about relative motion:https://brainly.com/question/30428774
#SPJ1
Can someone please help, ty!!
(Will mark brainliest)
Answers
seawater is denser than fresh water. a ship sailing from the atlantic ocean into the great lakes moves from seawater into fresh water. will the ship sink deeper into the water during this passage, stay the same level, or rise slightly? the following are student responses from a previous year. some of them may not be technically wrong but are incomplete explanations. choose the best, most complete explanation. group of answer choices salt water is more dense than fresh water so the ship will sink deeper when it sails into fresh water. the floating ship displaces exactly its own weight in water, so it will displace a smaller volume of the denser salt water than it would the less dense fresh water. a displaced fluid has the same mass as the total fluid. since fresh water is less dense than seawater the ship will sink deeper when passing from the atlantic ocean to the great lakes. the level at which a solid floats on a denser fluid depends on their relative densities. it seems that the boat would float better in denser water, but this is not so. displaced fluid has the same mass as the floating boat, so the boat will not sink any more in freshwater than it will in saltwater. in moving from seawater to freshwater, a boat will sink slightly, because to be in equilibrium, the weight must be equal, so more of it will sink. when the ship moves from seawater to fresh water, the ship will rise slightly. according to the archimedes' principle, the ship's height that it floats at is equal to the weight of the water displaced. less dense water will be displaced more, so the ship rises when it moves to less dense water.
Answers
When a ship moves from seawater into fresh water, it will rise slightly.
This is because seawater has a higher density than fresh water due to its salt content. As the ship moves into the fresh water, the water surrounding the ship becomes less dense and the ship will float higher in the water. This is known as the buoyant effect and occurs because the ship's weight is being supported by the water, and a decrease in water density means that the water is able to support the ship more effectively, causing it to rise. Therefore, the ship will rise slightly as it moves from seawater into fresh water.To know more about fluid mechanics visit:
https://brainly.com/question/24018637
#SPJ4
The towing lines of two tugboats pulling horizontally on a barge are at an angle of 30° to each other. The tensions in the towing lines of the first and second tugboats are 3 kN and 4 kN respectively. Calculate the magnitude of the resultant force which the tugboats exert on the barge.
Answers
Answer: To calculate the magnitude of the resultant force exerted by the two tugboats on the barge, we can use vector addition. Since the towing lines are at an angle of 30° to each other, we can treat them as two vectors that form a triangle with the resultant force being the vector sum of the two towing forces.
Let's denote the towing force of the first tugboat as F1 = 3 kN, and the towing force of the second tugboat as F2 = 4 kN.
Using trigonometry, we can determine the horizontal and vertical components of the towing forces:
For F1:
Horizontal component: F1x = F1 * cos(30°)
Vertical component: F1y = F1 * sin(30°)
For F2:
Horizontal component: F2x = F2 * cos(30°)
Vertical component: F2y = F2 * sin(30°)
Now, we can add the horizontal and vertical components of the two towing forces separately to get the resultant force in the horizontal and vertical directions:
Horizontal component of resultant force: Fx = F1x + F2x
Vertical component of resultant force: Fy = F1y + F2y
Finally, we can use the Pythagorean theorem to calculate the magnitude of the resultant force:
Magnitude of resultant force: F = sqrt(Fx^2 + Fy^2)
Plugging in the values and calculating:
F1x = 3 kN * cos(30°) ≈ 2.598 kN
F1y = 3 kN * sin(30°) ≈ 1.5 kN
F2x = 4 kN * cos(30°) ≈ 3.464 kN
F2y = 4 kN * sin(30°) ≈ 2 kN
Fx = 2.598 kN + 3.464 kN ≈ 6.062 kN
Fy = 1.5 kN + 2 kN = 3.5 kN
F = sqrt(6.062 kN^2 + 3.5 kN^2) ≈ 6.964 kN
So, the magnitude of the resultant force exerted by the two tugboats on the barge is approximately 6.964 kN.
